55 Inch Floor Standing See-Through Transparent OLED Lifting All-in-One TV Interactive Touchscreen Display
Advanced Transparent OLED Display for Smart Commercial and Interactive Spaces
The 55 Inch Floor Standing See-Through Transparent OLED Lifting All-in-One TV Interactive Touchscreen Display is a premium digital signage solution designed for retail stores, museums, exhibitions, smart showrooms, and high-end commercial environments. It integrates advanced transparent OLED display technology with a lifting floor-standing structure, delivering a dynamic transparent OLED screen experience that combines motion, interactivity, and visual transparency.
As a professional OLED display manufacturer, this solution is engineered for next-generation transparent digital signage, enabling immersive storytelling where digital content appears to float in space while real objects remain visible behind the screen.
Lifting Transparent OLED Screen with Self-Emissive Technology
Floating Visual Effect with Motorized Lifting Structure
This transparent OLED screen uses self-luminous OLED pixels, eliminating the need for a backlight system. Each pixel emits its own light, ensuring high contrast, vivid colors, and a true see-through display effect.
Key display features include:
- 55-inch transparent OLED panel
- Full HD 1920 × 1080 resolution
- 38%–43% transparency level
- Motorized lifting mechanism (adjustable height)
- Capacitive multi-touch support
- Wide 178° viewing angle
- High contrast ratio with deep blacks and bright colors
- Ultra-thin commercial-grade design

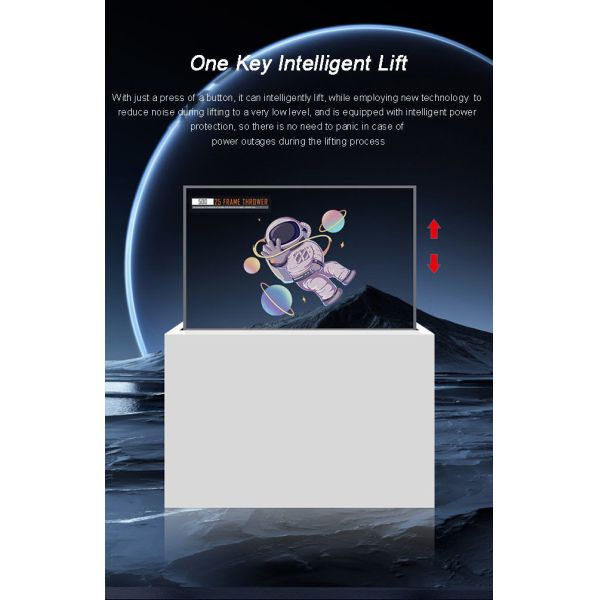

The lifting structure adds a dynamic visual experience, allowing the screen to rise or lower automatically for presentation, product launches, or interactive demonstrations.
Interactive All-in-One Smart Display System
This all-in-one system integrates display, touch, and intelligent control into a single platform.
Functional advantages include:
- Multi-touch interaction for user engagement
- Android/Windows system support
- Real-time content playback and control
- Optional AI digital content integration
- Smooth video and animation performance
- Smart kiosk functionality
This transforms traditional signage into a fully interactive smart display system.
| Transparent OLED — 55-inch Lift Model(ZXTLCD-OD018) |
| Parameters |
Panel |
Size |
55 inches |
| Type |
OLED panel technology |
| Light transmittance |
43% |
| Dynamic contrast ratio |
200000:1 |
| Aspect ratio |
16:9 |
| Resolution |
1920*1080(FHD) |
| Viewing angle |
R/L 120(min) U/D 120(min) |
| Brightness |
600/200 cd/m² (Center 1point,Typ) |
| Number of pixels(HxVx3) |
6220800 |
| Color gamut |
90% |
| Lifespan (typical value) |
30,000 hours |
| Operating time |
18 hours/7 days (dynamic images only) |
| Orientation |
Landscape orientation |
| Refresh rate |
120Hz |
| Interfaces |
Input |
HDM IInterfaces*1 |
| USB Interfaces*1 |
| Function |
Touch control |
None/Capacitive (optional) |
| Features |
Transparent display, pixel-level self-controlling backlight, ultra-fast response |
| Power/Environment |
Power supply |
Operating power supply: AC100-240V, 50/60Hz |
| Environment |
Temperature: 0-40°C, Humidity: 10%-80% |
| Dimension |
Display size |
1209.6 x 680.4(mm) |
| Panel size |
1209.6 x 680.4mm |
| Overall dimensions |
1688.1*1434*360(mm ) |
| Power Consumption |
Typical value |
190W |
| DPM |
3W |
| Power off |
0.5W |
| Packaging |
Stand |
Main unit box, cover plate, base |
| Accessories |
Remote control, power cord |
FAQ
What is a transparent OLED display?
A transparent OLED display is a self-emissive screen that allows viewers to see through it while displaying high-definition digital content.
What is the advantage of the lifting structure?
It allows the screen to move up and down automatically, enhancing presentation impact and interactive flexibility.
Does it support touch interaction?
Yes, it supports capacitive multi-touch functionality.
Where is it commonly used?
It is widely used in retail, exhibitions, museums, and high-end commercial environments.
Conclusion
The 55 Inch Floor Standing See-Through Transparent OLED Lifting All-in-One TV Interactive Touchscreen Display combines motion design, interactivity, and advanced transparent OLED display technology. As a professional OLED display manufacturer, it provides powerful transparent OLED screen and transparent digital signage solutions that deliver immersive, futuristic, and high-impact commercial experiences.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
