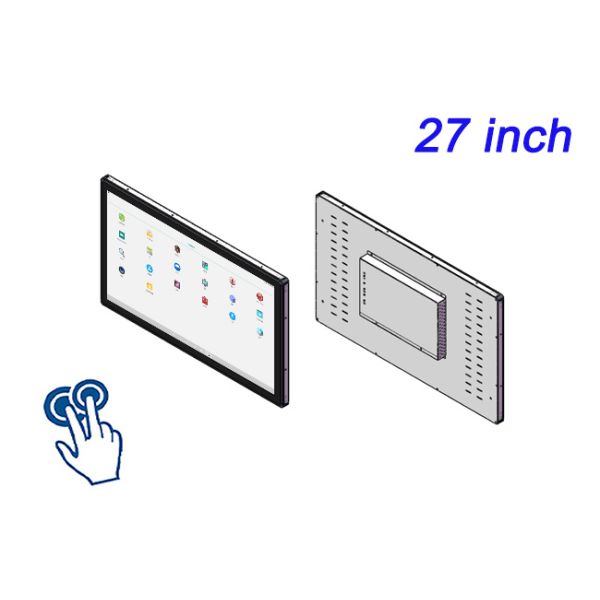

ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display

Name: ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display
Brand: ZXTLCD
Price: 1 USD

Buy cheap ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display product

Resolution : 1920 X 1080

Cabinet material : Metal case + Glass

Protype : Desktop / Floor standing /wall mounted(Optional)

Power Supply : AC 100~240V, 50hz-60hz

Panel type : BOE Original A+ Grade IPS

Brightness : 350cd/m²

Passport Scanner : Optional

POS terminal installation : Resever space

Operating Temperature : 0°C to 50°C

Screen Size : 27 inch

View Angle : 178°/178° (H/V)

80mm Thermal Printer : Support, built-in

Application : Hospitality, hotel and catering

Brand Name : ZXTLCD

Model Number : ZXTLCD-RM270SAT

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C,T/T

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Power Consumption : 80W

NFC Reader/scanner/QR reader : Support, built-in

Touch Screen : 10-point capacitive touch screen

Contact Now

ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display

Industrial TouchScreen Display

The Industrial TouchScreen Display, with its modular design and high integration, serves as a core device in the field of industrial automation. It features abundant interfaces, supporting multiple communication methods such as serial ports, USB, and Ethernet. Interface types and layouts can be customized according to customer requirements, enabling flexible adaptation to complex industrial scenarios.

ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display

As a product from a source factory with strong capabilities, the device undergoes strict quality control from hardware to software, ensuring stable and reliable performance.

In terms of system compatibility, the embedded industrial touch computer comes pre-installed with Windows 7 and also supports Linux, Android, and other operating systems. It is compatible with mainstream human-machine configuration software, enabling seamless integration into industrial control processes.

ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display

The device boasts an IP65 industrial protection rating, with excellent dustproof and waterproof performance, making it suitable for harsh environments such as dusty, humid, and vibrating conditions.

The screen utilizes an industrial-grade high-definition A-class panel, with real-time display optimization for vibrant colors and flicker-free performance, ensuring a smooth and clear operating interface.

ZXTLCD 27 Inch Waterproof Industrial Control Embedded Fully Enclosed Industrial TouchScreen Display

The device supports power-on startup and can operate 360 days × 24 hours continuously. Paired with an efficient heat dissipation system and a design resistant to high and low temperatures, it guarantees long-term stable operation.

LCD Panel Parameters	Screen Size	27 Inch
	Display Area	476.5 mm (Height) X 268 mm (Width)
	Aspect Ratio	16 : 9	16 : 9
	LCD Type	a-Si TFT-LCD Monitor	a-Si TFT-LCD Monitor
	Maximum Resolution	1920 X 1080	3840 X 2160
	Display Color	16.7m , 99% sRGB	1.07B , 95% DCI-P3
	Brightness	300cd/m²	400cd/m²
	Contrast Ratio	1000 : 1	1000 :1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)	89°/89°/89°/89°(Type)(CR≥10)
	Response Time	14ms	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	60Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Capacitive Touchscreen Capacitive Projected
	Touch Points	10 Points
	Cover Glass	Physical toughened Morse magnitude 7 explosion-proof
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Audio parameters	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Configuration PCB Android Built-in (Choose one of two)	CPU	Quad-Core RK3288, 1.8GHz	Quad-Core RK3568,2.0GHz
	GPU	Mali-T764	Mali-G52
	RAM	2GB	4GB
	ROM	32GB	32GB
	Android System	Android 10.0	Android 11.0
	Ethernet	1 x RJ45, Ethernet 1,000 Mbps	1 x RJ45, Ethernet 1,000 Mbps
	Wireless Internet	2.4Gigahertz	2.4Gigahertz/5Gigahertz, Wi-Fi 6
	Bluetooth	4.2	5
	Interface	USB2.0 x 2	USB2.0 x 2
			HDMI IN x 1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 45 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	651.4 X 389.6 X 52.2 mm.
	Net Weight	10 Kilogram
	Package Size	72 X 47 X 15Centimeter
	Gross Package Weight per Unit	11 Kilogram

Whether for production line monitoring, equipment interaction, or smart warehouse management, the Industrial TouchScreen Display enhances efficiency in industrial scenarios with its high performance and reliability, making it an ideal choice for modern industrial control.
