Data Rugged Tablet with Barcode Scanner 10.1 Inch for Workflow Records and Site Entry

Barcode-based workflows can reduce repeated typing when staff register assets, materials or site entries. This 10.1-inch rugged tablet with barcode scanner is positioned for Android data collection and combines Android 15 with a 1920 × 1200 touch display and flexible memory options.

The tablet measures 273 × 172 × 20 mm and supports ten-point touch. Its larger screen can show a scanned item, validation result and related form fields together, helping operators resolve exceptions without moving to another terminal.

Configure the Scanner Before Ordering

The title identifies barcode scanning, but the public specification does not state whether the reader is standard or optional, nor does it identify the scan engine, supported symbologies or mounting position. Buyers should confirm 1D or 2D requirements, expected code size, scan distance and application interface. The final quotation should name the installed module.

Configurations include 8GB+256GB and optional 16GB+512GB. This provides room for Android applications, offline records and reference files. The processor is not published, so scanner software and business applications should be tested on the approved production unit.

Wi-Fi 6 and Environmental Configuration

The rugged tablet with barcode scanner supports 802.11a/b/g/n/ac/ax on 2.4GHz and 5GHz bands, including Wi-Fi 6. This can connect scanning workflows to an authorized warehouse, facility or site network. Cellular communication, GPS, Bluetooth and NFC are not listed.

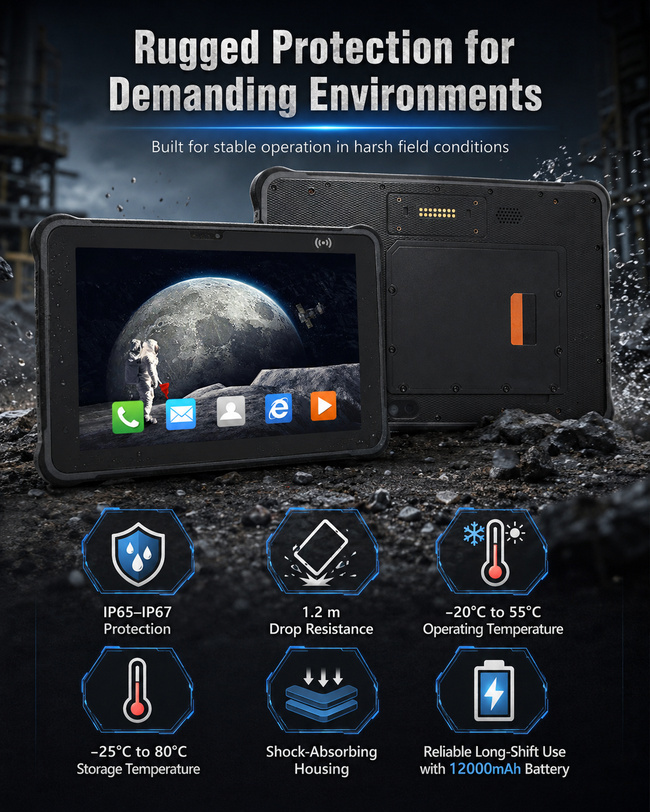

The waterproof specification is shown as IP65–IP67, which indicates that protection may depend on configuration rather than one universal rating. The ordered model should state the exact tested rating. Operating temperature is -20°C to 55°C and storage is -25°C to 80°C.

Test Real Labels and Exception Cases

A useful pilot includes clean labels, damaged codes, reflective packaging and the actual working distance. The application should respond clearly when a code is duplicated, unknown or unreadable. Battery capacity, drop resistance and physical ports are not published and require separate confirmation.

Send ZXTLCD sample barcodes, the Android application, required protection rating and memory level. This ensures the rugged tablet with barcode scanner is configured for the intended data process and prevents a general scanner claim from replacing a verified module specification.

### Design the Scan Workflow Around Exceptions

Fast scanning is useful only when the software handles mistakes clearly. The pilot should include duplicate items, invalid codes, products assigned to the wrong location and labels that cannot be read. Operators need an obvious way to correct the record without creating a second transaction. Confirm whether scanning is triggered by a physical key or an on-screen control, whether feedback is visual or audible and whether the reader remains accessible when a protective case is fitted. For shared units, define user identification and shift handover. These workflow details should appear in the project acceptance checklist together with the exact scan engine, Android build and IP rating supplied.

Label samples should represent the full project, including the smallest code, the widest code and materials with glare or curved surfaces. If workers scan while wearing gloves or from a vehicle, reproduce that condition in the test. The result will show whether the selected reader is appropriate before a fleet is ordered.

After the reader is approved, its exact part number should remain linked to the tablet model and software release. Substituting another scan engine later may change reading performance or application integration, even when the exterior product looks unchanged. This information belongs in repeat-order documentation.

---
